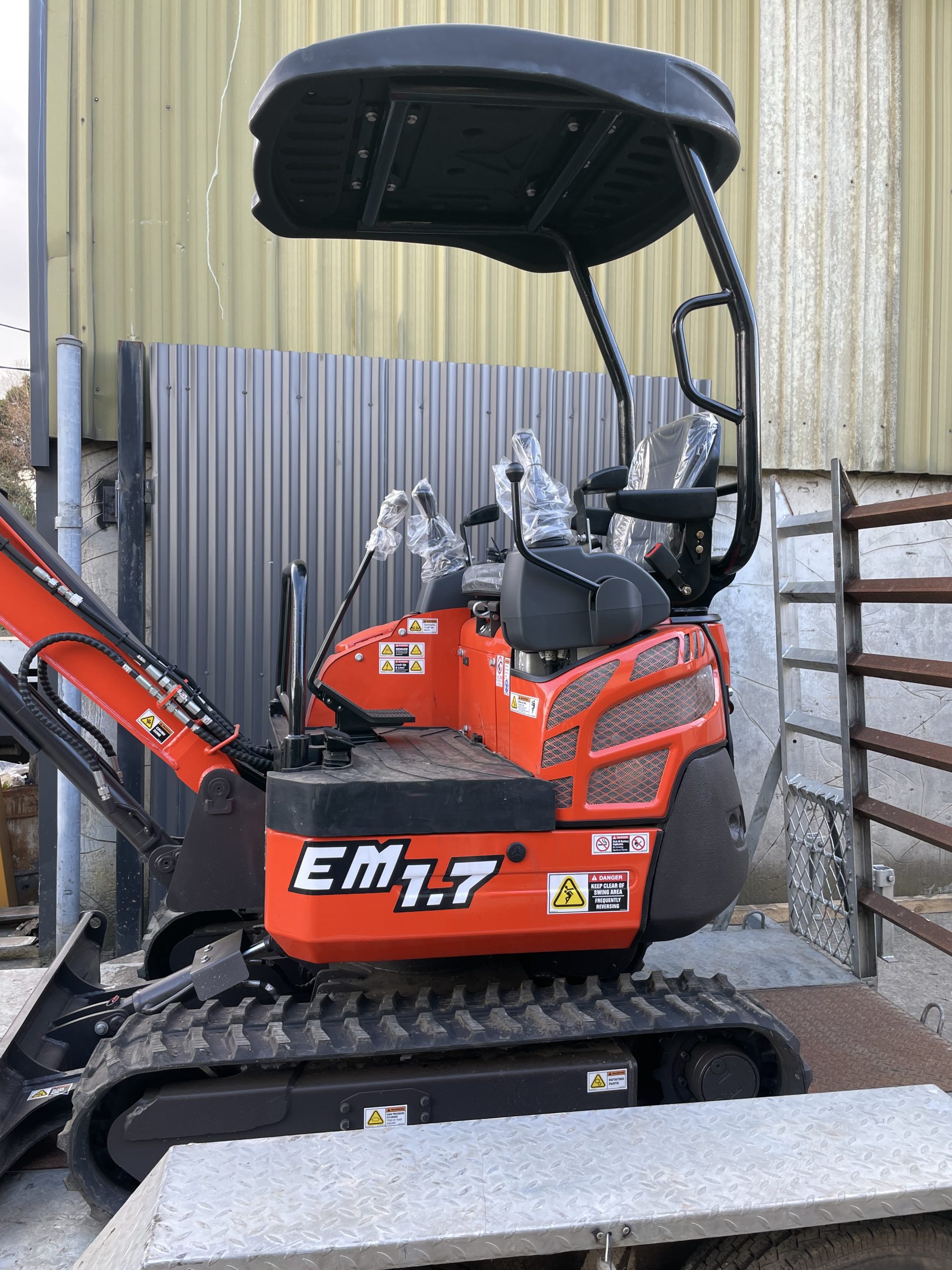

emed excavator em1.7 and trailer package plus free attachments

Fight the high cost of excavators with Earth Moving Equipment Direct. EM1.7 Mini crawler and trailer – Yanmar engine, KDK hydraulic main pump, USA Eaton motor, pilot controls. Excavator trailer. All steel construction, made in Australia. Suitable for excavators, skid steers and other machinery. Rated to 3.5 ton payload, weight is 2750kgs. Fits all attachments. Width between guards is 1150mm, the bed length is 1660mm and the total length is 4.4m. 4 wheel electric brakes, 5 rims and Tyres, 12 months registration.

Standard inclusions:

• Trenching bucket 200mm.
• GP bucket 400mm.
• Mud bucket 600mm.
• Mud bucket 1000mm.
• Hydraulic quick hitch.
• Rake.
• Ripper.
• Wood grapple.

Specifications
Model: EM1.7.
Brand: EMED.
Operating Weight: 1700kg.
Digging Bucket Capacity: 0.045cbm/200kg.
Digging Bucket Width: 420mm.
Engine: Yanmar 3TNV74F.
Rated Power: 13.7kw/18.4hp/2200/r/min.
Displacement: 0.854L.
Bore Stroke: Three-cylinder, water cool.
Main Pump: KDK.
Valve: Permco.
Displacement: 6.8ml/r.
Swing Motor: Eaton.
Traveling Motor: Korea Donghyun.

Main Dimensions
Overall Dimension (LxWxH): 3160 x 1110 x 2377mm.
Total Length of Track On Land: 1450mm.
Platform Ground Clearance: 437mm.
Platform Back Turning Radius: 740mm.
Chassis Width: 1040mm.
Track Width: 180mm.
Chassis Ground Clearance: 132mm.
Track Height: 320mm.

Operating Range
Max. Digging Depth: 2190mm.
Max. Vertical Digging Depth: 1780mm.
Max. Digging Height: 3230mm.
Max. Dumping Height: 2260mm.
Max. Digging Radius On Ground: 3500mm.
Min. Rotation Radius: 1440mm.
