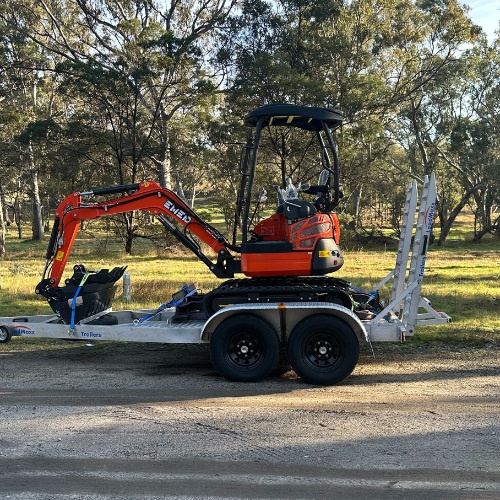

emed em1.8 excavator & trailer package + free attachments

EM1.8 Mini crawler and trailer – Yanmar engine, KDK hydraulic main pump, USA Eaton motor, pilot controls, swing boom & expandable tracks.

This package includes:

• 1 x EM1.8 excavator with swing boom & expandable tracks.
• 1 x Aluminum plant trailer 3.5 ton rated.

Plus our Standard FREE Inclusions

• Trenching bucket 200mm.
• GP bucket 400mm.
• Mud bucket 600mm.
• Mud bucket 1000mm.
• Hydraulic quick hitch.
• Rake.
• Ripper.
• Mechanical grab.
• All pins.
• Filter kit.
• Tool box.

Specifications
Operating Weight: 1700kg.
Expandable tracks.
Swing boom.
Digging Bucket Capacity: 0.045cbm/200kg.
Digging Bucket Width: 420mm.
Engine: Yanmar 3TNV74F.
Rated Power: 13.7kw/18.4hp/2200/r/min.
Displacement: 0.854L.
Bore Stroke: Three-cylinder, water cool.
Main Pump: KDK.
Valve: Permco.
Displacement: 6.8ml/r.
Swing Motor: Eaton.
Traveling Motor: Korea Donghyun.

Main Dimensions
Overall Dimension (L x W x H): 3160 x 990 (1040) x 2377mm.
Total Length Of Track On Land: 1450mm.
Platform Ground Clearance: 473mm.
Platform Back Turning Radius: 740mm.
Chassis Width: 1240mm.
Track Width: 230mm.
Chassis Ground Clearance: 132mm.
Track Height: 360mm.

Operating Range
Max. Digging Depth: 2150mm.
Max. Vertical Digging Depth: 1740mm.
Max. Digging Height: 3275mm.
Max. Dumping Height: 2310mm.
Max. Digging Radius On Ground: 3610mm.
Min. Rotation Radius: 1580mm.

Excavator Trailer: Aluminum Trailer EMPT3500.
ATM: 3500kg.
Tare Weight 650kg.
Payload Weight 2850kg.
Torsion Axle x 2.
Electric brakes with break away device.
LED lights.
Deck Length: 2700mm.
Deck Width: 1830mm.
Deck Height: 550mm.
5 x wheels & tyres.

Trailer Optional Extras:

• Jerry can holder  – $150 Plus GST
• Auger post suits 70mm auger – $120 Plus GST
• Auger drive holder – $250 Plus GST
• Registration – N/A outside Victoria. $150 Plus GST in Victoria.
• Tie down kit – $280 Plus GST – Kit includes: Blinders x 2, 8mm rated chain 9m long with two hooks x 1 & 3.2T Rated strap for bucket x 1.
• Upgrade to alloy wheels x 4 – $495 plus GST
• Spare wheel & tyre – $150 Plus GST – Note: 1 x spare wheel & Tyre is included in purchase price of the trailer.
