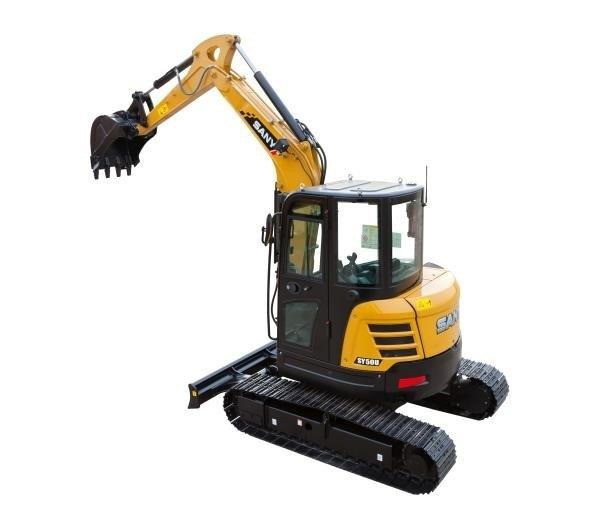

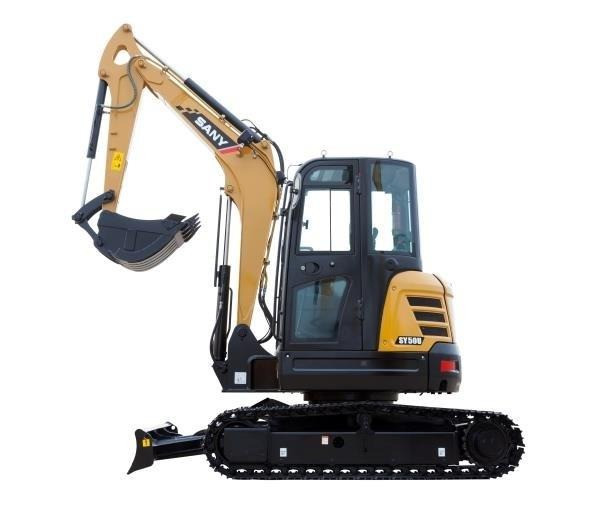

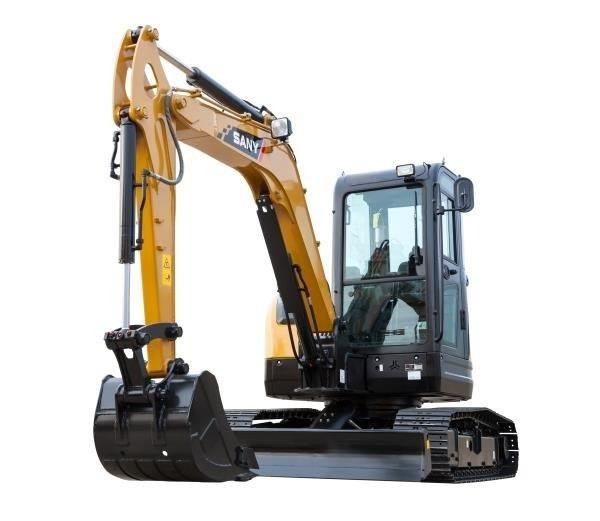

-->2019 SANY SY50U MINI EXCAVATOR - JTHFD5061579 - JUST HEAVY EQUIPMENT Skip to main content

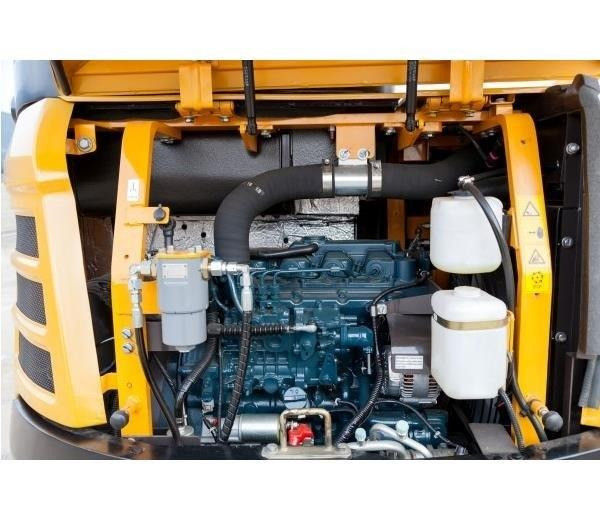

Stock ref # OC1003S, Brand New Sany Mini Excavator SY50U. Engine Engine model Yanmar 4TNV88C-PSY Rated power 29.1/2400 kW/rpm Max.torque 133.3~144.9/(1560100) Nm/rpm Displacement 2.19 L Emission standard Tier 4 Final Operation Range Operating weight 5200 kg Max. digging height 5450 mm Max. dumping height 3805 mm Max. digging depth 3420 mm Max. vertical digging depth 2460 mm Max. digging reach 5880 mm Min. swing radius 2520 mm Height at min.swing radius 4145 mm Max.ground clearance of blade up 420 mm Max.depth of blade down 405 mm Dimensions Transport length 5390 mm Transport width 1960 mm Transport height 2630 mm Upper width 1760 mm Blade height 340 mm Tail swing radius 980 mm Min. ground clearance 315 mm Counterweight ground clearance 660 mm Undercarriage/Working Device Std. track shoe width 400 mm Bucket capacity 0.15m Track shoes(per side) 40 Carrier roller(per side) 1 Lower roller(per side) 4 Track gauge 1560 mm Roller gauge 1990 mm Boom length 2700 mm Arm length 1500 mm Performance Travel speed 4.0/2.7 km/h Swing speed 10 rpm Gradeability 30 Ground pressure 32 kPa Tractive force 40.7 kN Bucket digging force 32.5 kN Arm digging force 22.9 kN Service Refill Capacities Fuel tank 78 L Hydraulic tank 52 L Engine oil 7.4 L Engine coolant 4.2 L Hydraulic System Boom cylinder bore x stroke 90640 mm Arm cylinder bore x stroke 80690 mm Bucket cylinder bore x stroke 70590 mm Blade cylinder bore x stroke 95170 mm. $69,390.20 Brand New Includes Warranty. Currently located in Melbourne, Vic. Delivery to Western Traders Yard Qld Available. For further information on this machine, contact Rob at Western Traders.
