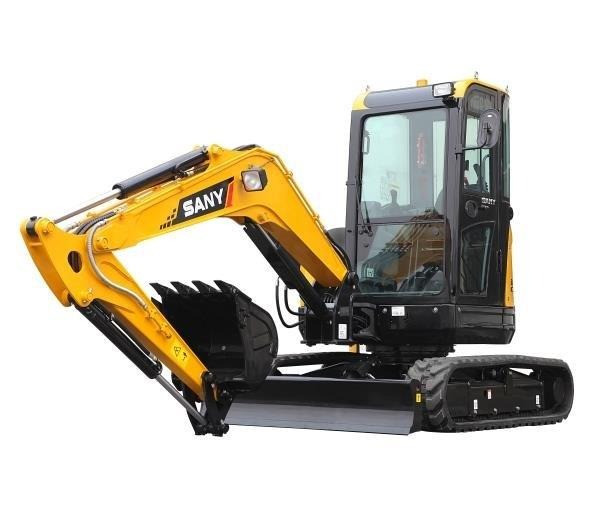

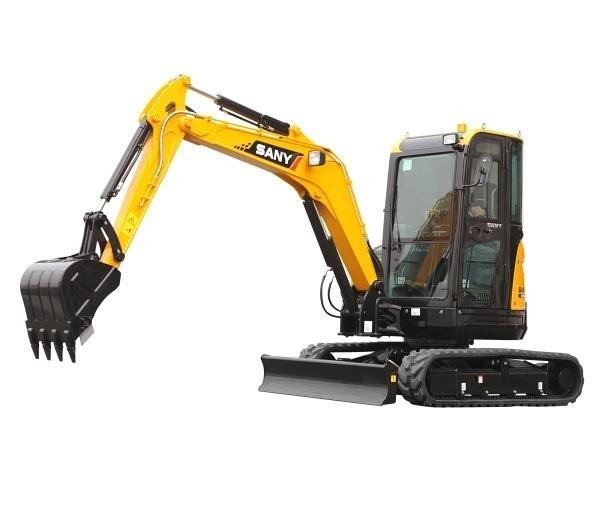

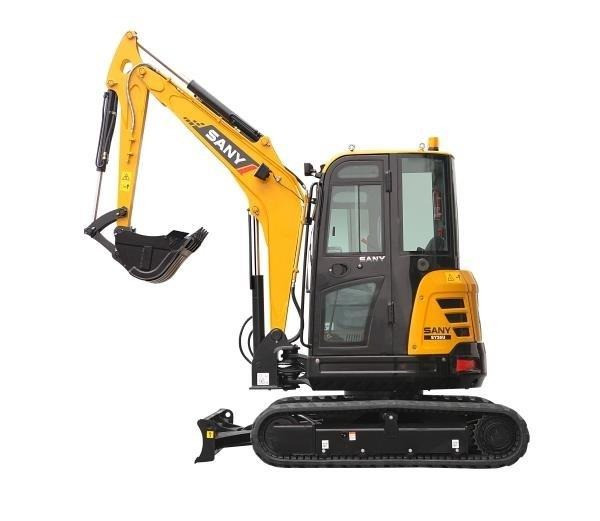

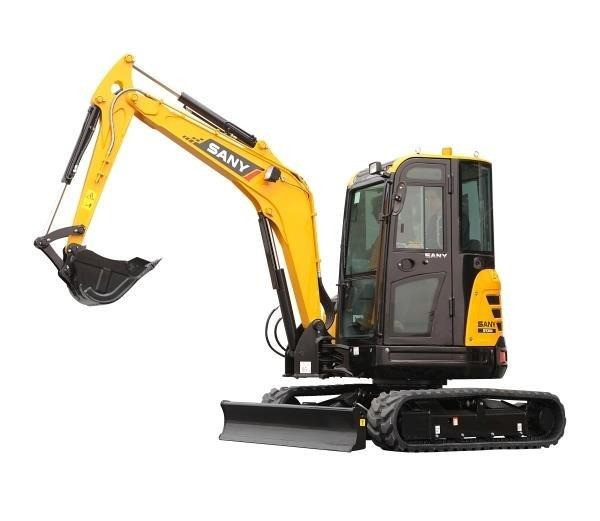

Stock ref # OC1002S, Brand New Sany Mini Excavator SY35U Engine Engine model Yanmar 3TNV88F-ESSY Rated power 18.2/2200 kW/rpm Max.torque 94.5/1200NN.m./rpm Displacement 1.642L Emission standard Tier 4f Operation Range Operating weight 3860 kg Max. digging height 4855mm Max. dumping height 3460mm Max. digging depth 3105mm Max. vertical digging depth 2700mm Max. digging reach 5465mm Min. swing radius 2475mm Height at min.swing radius 3685mm Max.ground clearance of blade up 375mm Max.depth of blade down 370mm Dimensions Transport length 4915mm Transport width 1720mm Transport height 2515mm Upper width 1550mm Blade height 350mm Tail swing radius 860mm Min. ground clearance 295mm Undercarriage/Working Device Std. track shoe width 300 mm Bucket capacity 0.12 m Track gauge 1420mm Roller gauge 1670mm Boom length 2540 mm Arm length 1400 mm Performance Travel speed 4.4/2.4kw/h Swing speed 9rpm Gradeability 58% Ground pressure 32kPa Bucket digging force 30.4kN Arm digging force 18.2kN Fuel tank capacity 40L Hydraulic tank capacity 40L Brand New Includes Warranty. $54,100.20 Currently located in Melbourne, Vic. Delivery to Western Traders Yard Qld Available. For further information on this machine, contact Rob at Western Traders.
