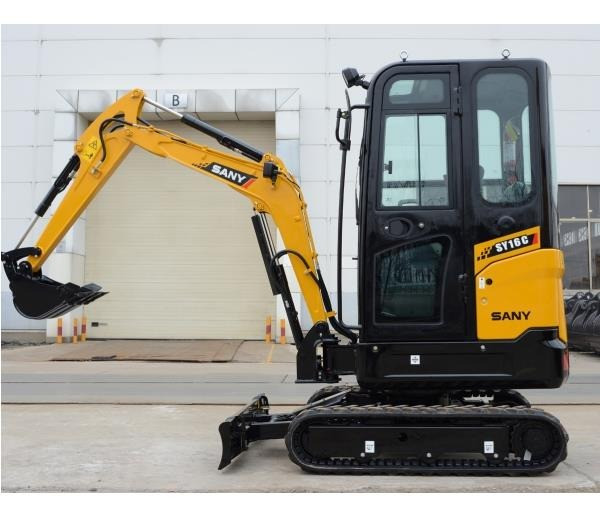

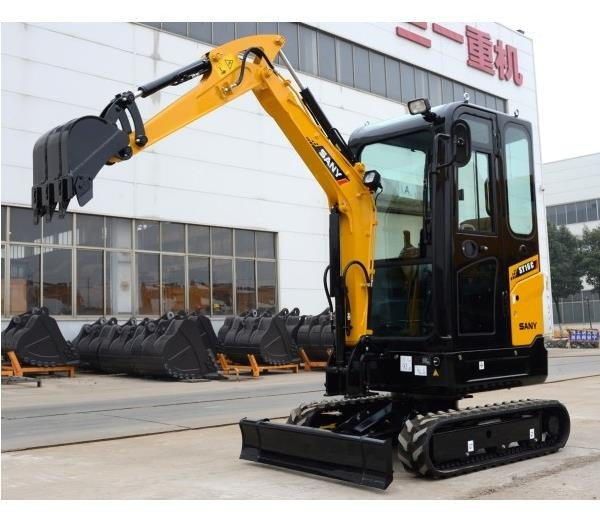

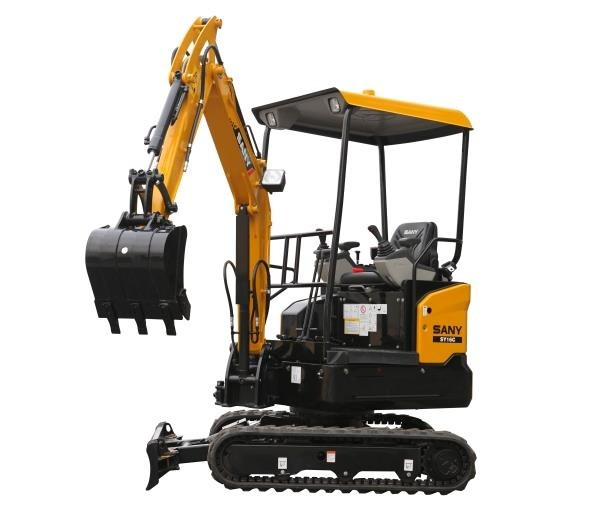

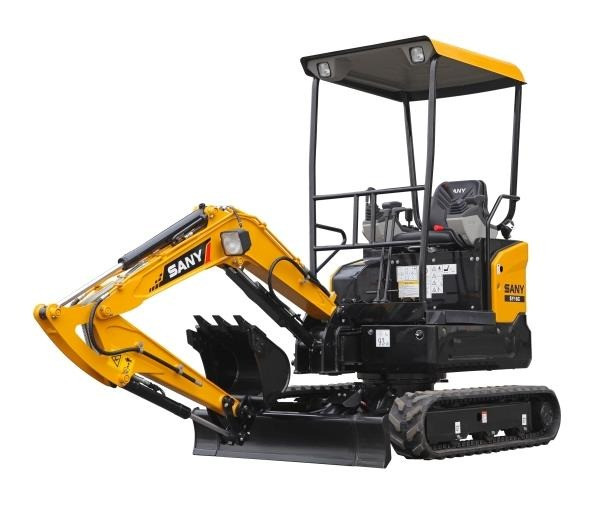

Stock ref # OC999S, Brand New 2019, Sany Mini Excavator, SY16C features high efficiency, low consumption and a comfortable operating environment. The 1.82 ton excavator has a wide range of applications in narrow spaces including forest, farm and indoors. Benefits & Features: High Performance & Reliability, Compact Design for Narrow Zone Operations, Strong Adaptability to Various Situations, Safe & Environmentally Friendly. Engine Engine model Yanmar 3TNV74F Rated power 11.2/2400 kW/rpm Max.torque 48.5-51.8/1800 Nm/rpm Displacement 0.993 L Emission standard Tier 4 final Operation Range Operating weight 1820 kg Max. digging height 3665 mm Max. dumping height 2635 mm Max. digging depth 2360 mm Max. vertical digging depth 2215 mm Max. digging reach 4000 mm Min. swing radius 1655 mm Height at min.swing radius 2745 mm Max.ground clearance of blade up 310mm Max.depth of blade down 320mm Dimensions Transport length 3575 mm Transport width 980/1350 mm Transport height 2420 mm Upper width 980 mm Blade height 270 mm Tail swing radius 920 mm Min. ground clearance 180 mm Undercarriage/Working Device Std. track shoe width 230 mm Bucket capacity 0.04 m Track gauge 750/1120 mm Roller gauge 1220 mm Boom length 1810 mm Arm length 1130 mm Performance Travel speed 3.7/2.1 km/h Swing speed 10 rpm Gradeability 30 Ground pressure 29.1 kPa Bucket digging force 15.2 kN Arm digging force 9.2 kN Fuel tank capacity 23 L Hydraulic tank capacity 21 L Brand New Includes Warranty. $35,510.20. Currently located in Melbourne, Vic. Delivery to Western Traders Yard Qld Available. For further information on this machine, contact Rob at Western Traders.
