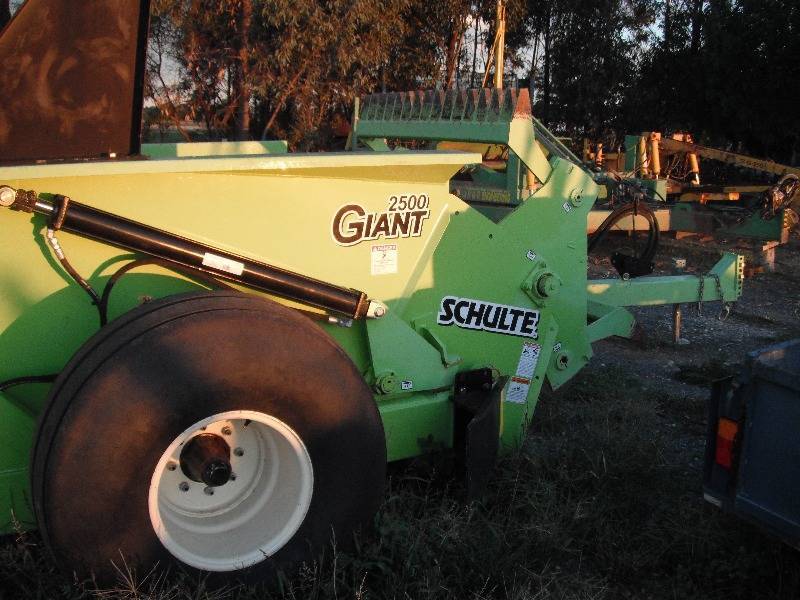

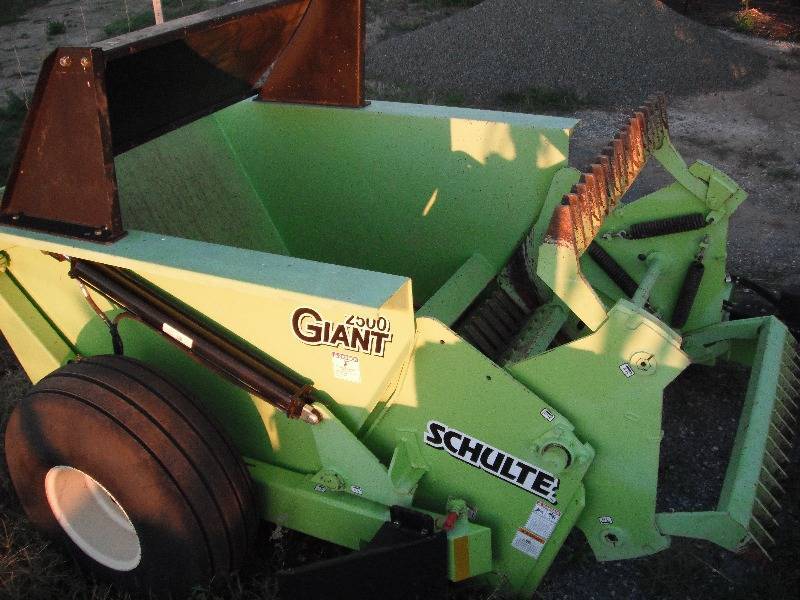

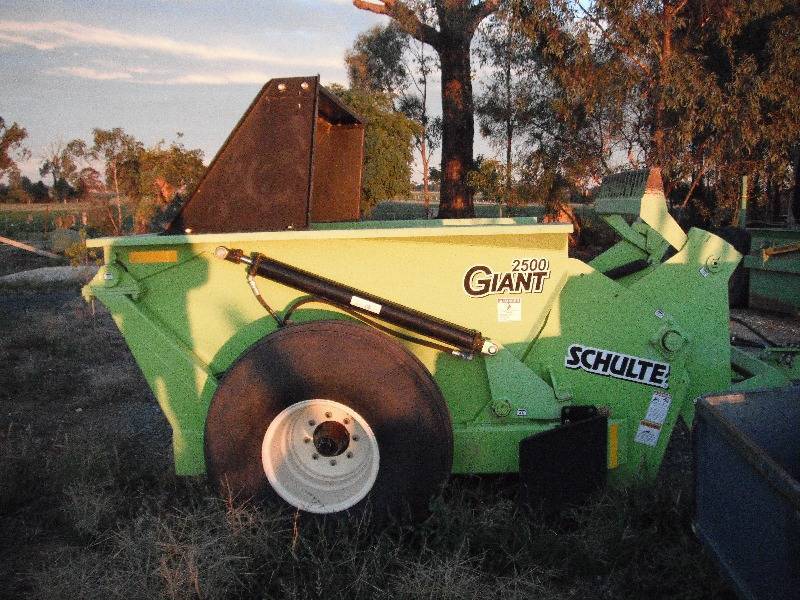

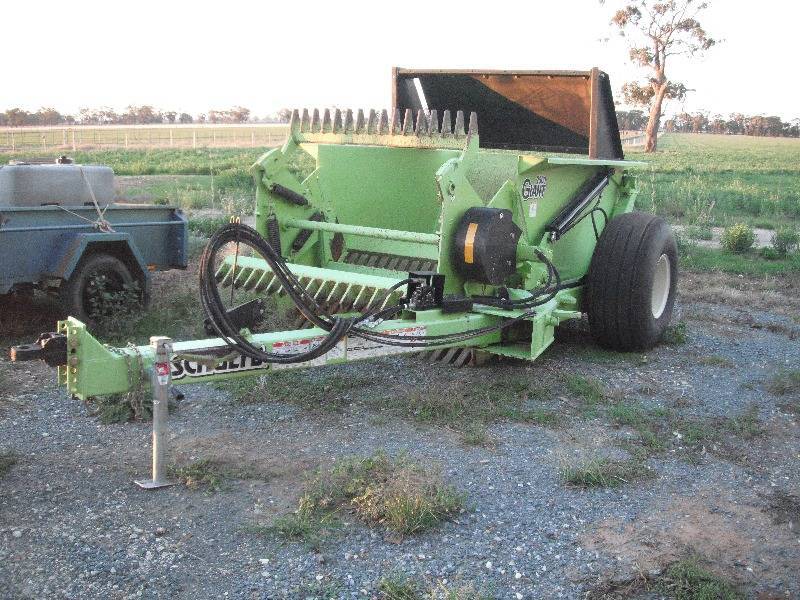

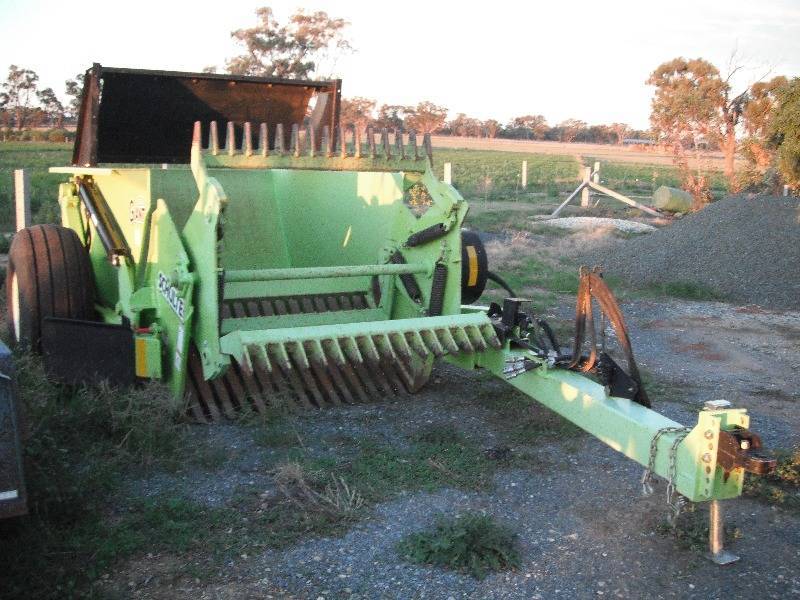

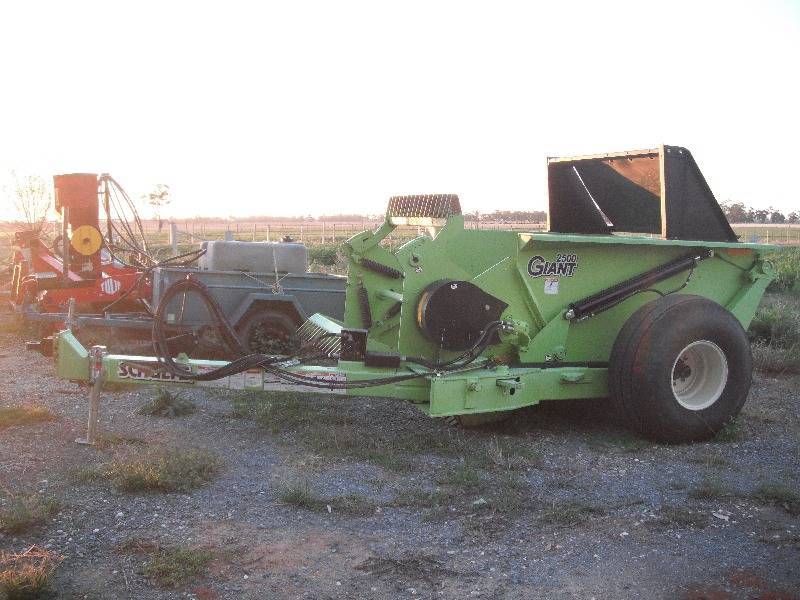

2009 SCHULTE 2500 GIANT Rock picker with very few hours in as new condition. The grille has been modified with an Aussie grille by Schulte to assist with the picking up of smaller rocks. Schulte Giant 2500 Rock picker with very few hours in as new condition. The grille has been modified with an Aussie grille by Schulte to assist with the picking up of smaller rocks. The data on the rock picker is as follows: Specifications 2500 Giant Rock Picker Weight (Approximate) 4970 lbs (2254 Kg) Overall length 205 (5207 mm) Width with tyres 114 (2896 mm) Width less tyres 91 inch (2311 mm) Hopper capacity 2.5 cubic yards (1.9 M3) Picking width 60 inch (1524 mm) Dumping height 49 (1245 mm) Tyre size 16.5L x 16.1 Minimum tractor size 75 HP (56Kw) Normal maximum ground speed 4 MPH (6.4 KPH) Tractor hydraulic requirement 12 GPM @1800 PSI, dual remote outlets Hydraulic motor displacement 14.9 cubic inch/revolution Final drive ratio 4:1 Drive sprockets 11T and 45T #80 Cross over relief valve 1750 PSI cracking pressure Flow control 0-15 GPM Recommended reel speed 36-37 RPM Pick rocks 2 inch to 27 inch (smaller with aussie grille)
Advertisement
Ad Id | JHM3268192 |
Price | sold |
